Docker 部署ElasticSearch集群

docker pull elasticsearch:7.6.2

2>创建数据挂在目录，以及配置ElasticSearch集群配置文件

mkdir /docker/ES

mkdir /docker/ES/data1

mkdir /docker/ES/data2

mkdir /docker/ES/data3

mkdir /docker/ES/config

在config文件夹下创建配置文件

touch es1.yml es2.yml es3.yml

编辑es1.yml文件

vi es1.yml

cluster.name: hzmt-es-cluster
node.name: es-node1
network.bind_host: 0.0.0.0
network.publish_host: 192.168.10.122
http.port: 9200
transport.tcp.port: 9300
http.cors.enabled: true
http.cors.allow-origin: "*"
node.master: true
node.data: true
discovery.zen.minimum_master_nodes: 2
discovery.seed_hosts: ["192.168.10.122:9300","192.168.10.122:9301","192.168.10.122:9302"]
cluster.initial_master_nodes: ["es-node1","es-node2","es-node3"]

vi es2.yml

cluster.name: hzmt-es-cluster
node.name: es-node1
network.bind_host: 0.0.0.0
network.publish_host: 192.168.10.122
http.port: 9200
transport.tcp.port: 9300
http.cors.enabled: true
http.cors.allow-origin: "*"
node.master: true
node.data: true
discovery.zen.minimum_master_nodes: 2
discovery.seed_hosts: ["192.168.10.122:9300","192.168.10.122:9301","192.168.10.122:9302"]
cluster.initial_master_nodes: ["es-node1","es-node2","es-node3"]

vi es3.yml

cluster.name: hzmt-es-cluster
node.name: es-node1
network.bind_host: 0.0.0.0
network.publish_host: 192.168.10.122
http.port: 9200
transport.tcp.port: 9300
http.cors.enabled: true
http.cors.allow-origin: "*"
node.master: true
node.data: true
discovery.zen.minimum_master_nodes: 2
discovery.seed_hosts: ["192.168.10.122:9300","192.168.10.122:9301","192.168.10.122:9302"]
cluster.initial_master_nodes: ["es-node1","es-node2","es-node3"]

添加防火墙：

firewall-cmd --add-port=9300/tcp

firewall-cmd --add-port=9301/tcp

firewall-cmd --add-port=9302/tcp

改变创建的文件夹权限：

chmod 777 data1 data2 data3

3>启动ElasticSearch集群容器

docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9200:9200 -p 9300:9300 -v /docker/ES/config/es1.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /docker/ES/data1:/usr/share/elasticsearch/data --name ES01 elasticsearch:7.6.2

docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9201:9201 -p 9301:9301 -v /docker/ES/config/es2.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /docker/ES/data2:/usr/share/elasticsearch/data --name ES02 elasticsearch:7.6.2

docker run -e ES_JAVA_OPTS="-Xms256m -Xmx256m" -d -p 9202:9202 -p 9302:9302 -v /docker/ES/config/es3.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /docker/ES/data3:/usr/share/elasticsearch/data --name ES03 elasticsearch:7.6.2

4>查看es是否启动成功

curl 127.0.0.1:9200

或者在你浏览器输入 http://你的ip:9200，显示下图内容则是成功

5>查看集群健康状态

curl ‘127.0.0.1:9200/_cat/health?pretty=true‘

或者在浏览器输入 http://你的ip:9200/_cat/health?pretty=true

6>使用elasticsearch-head前端框架

拉取镜像 docker pull mobz/elasticsearch-head:5

启动容器 docker run -d -p 9100:9100 --name es-manager mobz/elasticsearch-head:5

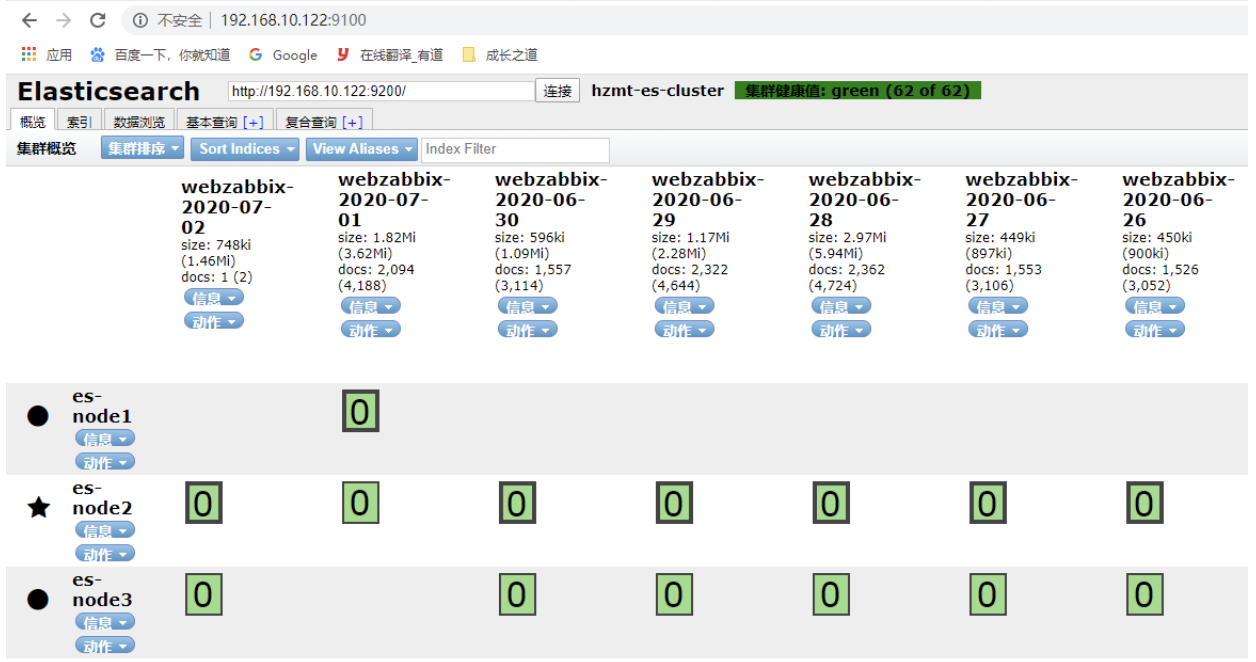

浏览器访问http://自己的ip:9100/，如下图表示

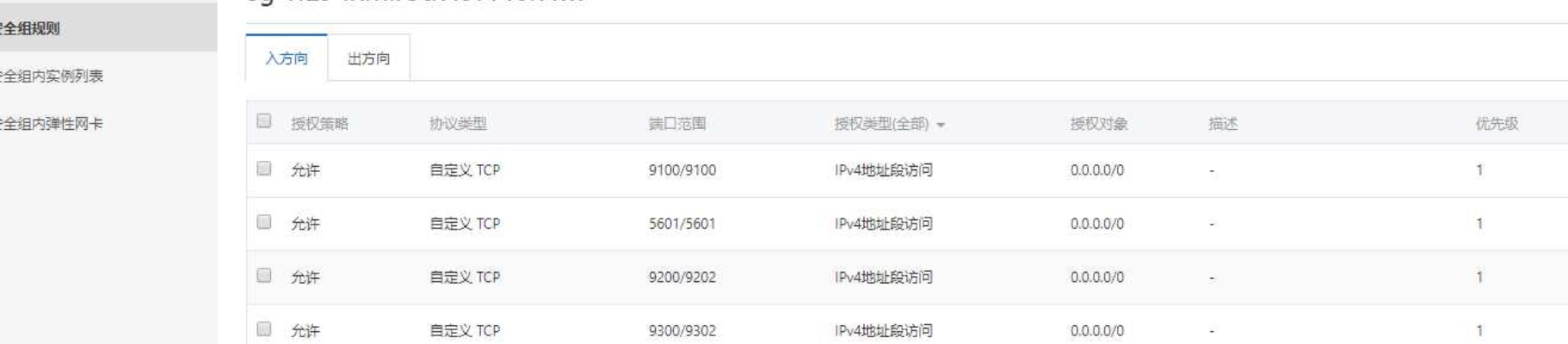

（如果是阿里云服务器，记得在安全组中加端口策略开放相应的端口号）
